Availability: | |
---|---|
Quantity: | |

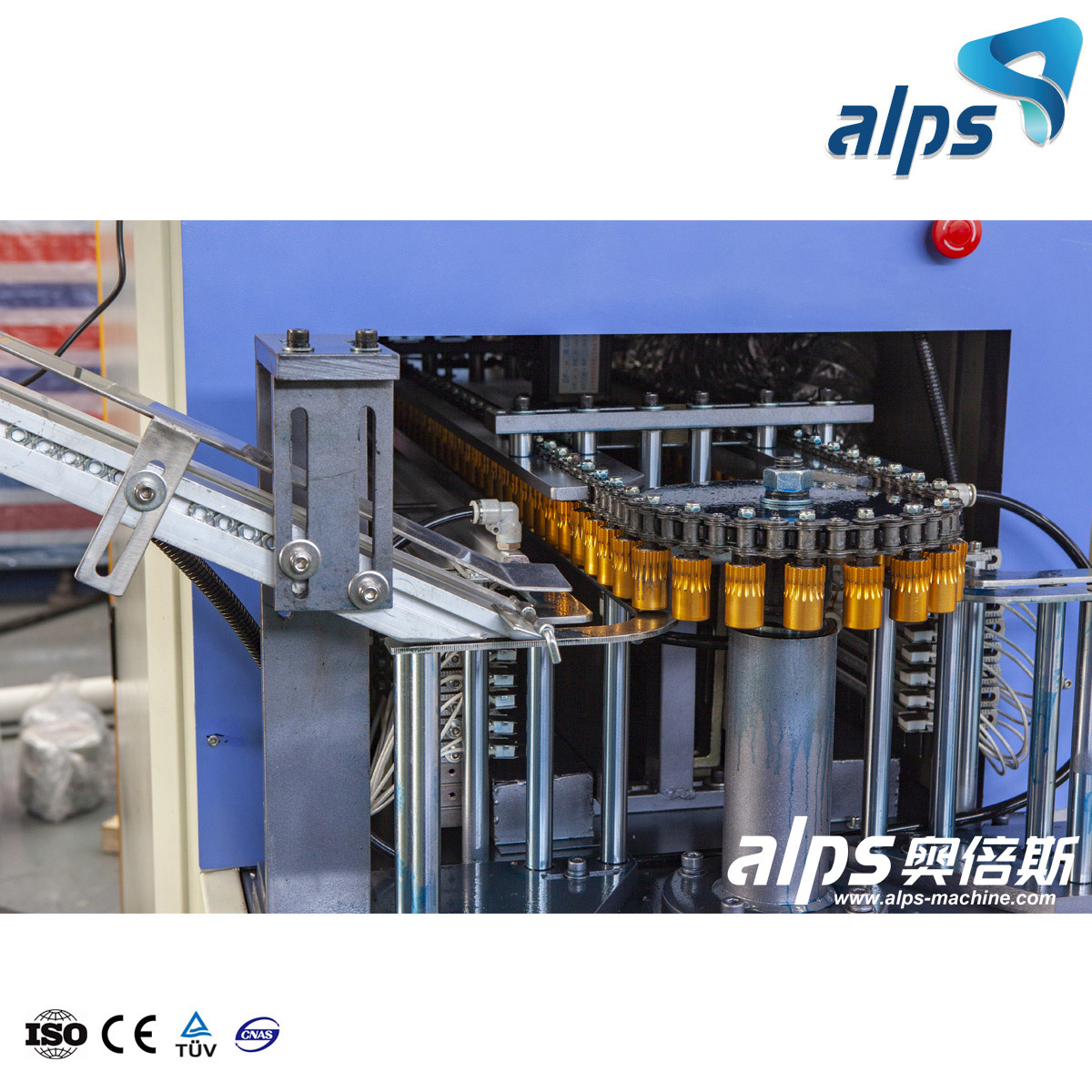

SBM-SA semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle, oil bottle cosmetics, wide-mouth bottle etc.
The PET preform unloading and unscrambling is full automatic, so only need one staff to operate this machine.
General information | SBM-SA4 |
Clamping force | 300KN |
Clamping stroke | 350mm |
Max. stretching stroke | 380mm |
Number of cavities | 4-cavity |
Theoretical output | 2000bph |
Max. mold thickness | 190mm |
Electrical system | |
Voltage standard | 380v/3PH/50Hz or special order |
Total power (full loaded) | 18.5KW |
Container | |
Max. container volume | 2.5L |
Neck diameter range | 15-45mm |
Max. container diameter | 110mm |
Max. container height | 370mm |
Auxiliary system | |
High air compressor | ≥1.6m3/3.0Mpa |
Dimension & weight (LxWxH) | |
Blow molding machine | 2.2x1.28x1.9m |
Preform heater | 2.1x0.87x1.8m |
Preform loader | 1.2x1.1x1.9m |
Total Net weight | 1.95 tons |
Total Gross weight | 2.1 tons |
